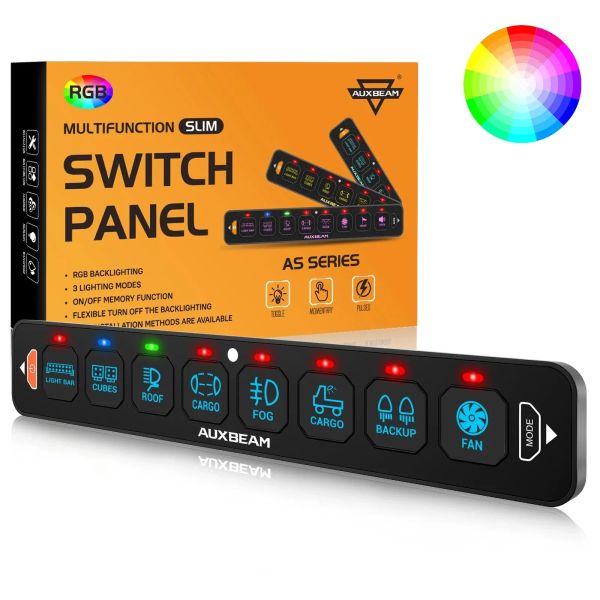

Auxbeam AS-R80 RGB Slim Switch Panel, Toggle/ Momentary/ Pulsed Mode Supported(One-Sided Outlet) QP011653



Specifications:

Voltage Input: DC 12-24V
Max Current: 80A
Rated Voltage: 12V 20A / 24V 10A
Max Power: 960W/12V,1920W/24V
Waterproof Rating: IP65
Operating Temperature: -40°C ~105℃/-40℉~221℉



Fitment:

Universal



Features:

8-Gang one-sided outlet switch panel. It allows you to control up to 4 different LED lights or devices. Command all your vehicle accessories by the tap of your finger.
3 modes setting. Each switch has 3 kinds of light status, different indicator status represents different working modes.
- RED-Toggle, Constant light mode (Great for things like fog lights or driving).
- BLUE-Momentary, Press & hold the button to turn on, then release the button to turn off, just like pressing the horn button.
- GREEN-Pulsed, Flash mode. Press the switch once and the device will flash on/flash off, continuing until the switch is pressed again.
RGB backlight color. Adjust backlight color and brightness to match your vehicle.
Backlight brightness automatic dimmable. Automatic adjustment according to the brightness variation of the environment.
Customize your own switch panel with 60 universal stickers. Use the provided switch labels to indicate what’s connected to that switch.
Universal fitment. Widely use for Truck, Boat, Car, Bus, Off-road, Powersports, Marine, ATV, UTV, SUV, Side by Side, SxS, Heavy-duty machines, etc.
Waterproof IP65, high sensitivity, stability and strong anti-interference ability
Easy Installation. No complicated wiring, no need to cut a big hole in your vehicle. Plug & play wiring harness can connect the LED lights or accessories easily.
With 2 types of mounting brackets, you can mount the panel in the best location for your vehicle, such as the dash panel, center console, overhead sunglasses holder, etc.



Parts Included:

1 Set of 8 Gang RGB Switch Panel (all necessary hardware and wiring harness is included)
