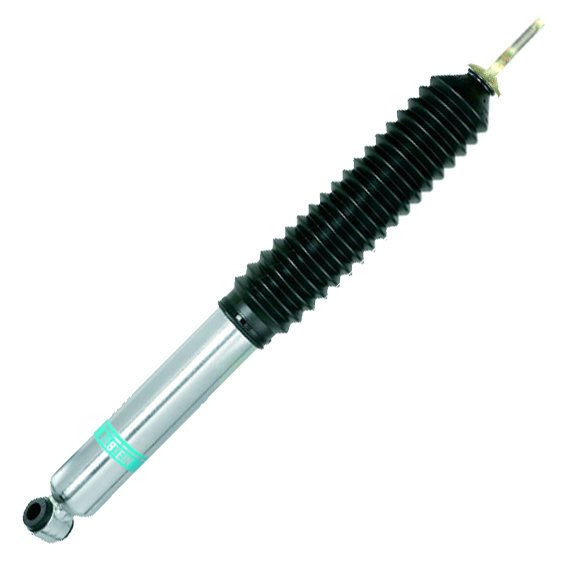

Bilstein B8 5100 Series Gas Shock Absorber Front for 87-95 Jeep Wrangler YJ with 3-5" Lift 24-064576
SKU
BIL-24-064576
We Price Match
- Part: Suspension - Shocks
- Manufacturer: Bilstein
The 5100 Series offers traditional Bilstein technology with applications for lifted trucks, Jeeps and prerunners.
Collapsed Length (in): 16.97
Extended Length (in): 28.44
Collapsed Length (in): 16.97
Extended Length (in): 28.44
Special Price $113.86 Regular Price $133.95
Bilstein 24-064576
The 5100 Series offers traditional Bilstein technology with applications for lifted trucks, Jeeps and prerunners. The 5100 Series shock absorbers are designed for specific manufactured lift kits utilizing the stock O.E.M. mounting configuration. 5100 Series shocks feature Bilstein's superior single tube high gas pressure design for the upmost in consistent fade-free performance and long life. Bilstein's patented Digressive self-adjusting valving delivers improved damping control and a smooth ride on all road surfaces at any speed.
Collapsed Length (in): 16.97
Extended Length (in): 28.44
Collapsed Length (mm): 431.0
Extended Length (mm): 722.5
Stroke/travel Length (in): 11.47
Lower Mount Type: Eye 12.7mm
Upper Mount Type: Stem
Internal Design: Monotube
Finish: Zinc Plated
Reservoir: No
Body Design: Smooth Body (Non-Coilover)
Body Diameter (od): 2.0 in.
Piston Diameter: 46mm
Boot Included: Black Bellows
Replacement Mounting Kit: B4-KT1-Z097A00
Spring Seat Included: No
Shaft Diameter: 14mm
Adjustable Damping: Non-Adjustable
The 5100 Series offers traditional Bilstein technology with applications for lifted trucks, Jeeps and prerunners. The 5100 Series shock absorbers are designed for specific manufactured lift kits utilizing the stock O.E.M. mounting configuration. 5100 Series shocks feature Bilstein's superior single tube high gas pressure design for the upmost in consistent fade-free performance and long life. Bilstein's patented Digressive self-adjusting valving delivers improved damping control and a smooth ride on all road surfaces at any speed.
Collapsed Length (in): 16.97
Extended Length (in): 28.44
Collapsed Length (mm): 431.0
Extended Length (mm): 722.5
Stroke/travel Length (in): 11.47
Lower Mount Type: Eye 12.7mm
Upper Mount Type: Stem
Internal Design: Monotube
Finish: Zinc Plated
Reservoir: No
Body Design: Smooth Body (Non-Coilover)
Body Diameter (od): 2.0 in.
Piston Diameter: 46mm
Boot Included: Black Bellows
Replacement Mounting Kit: B4-KT1-Z097A00
Spring Seat Included: No
Shaft Diameter: 14mm
Adjustable Damping: Non-Adjustable
Fitment:
87-95 Jeep Wrangler YJ with 3-5" Lift
Features:
Self-Adjusting Deflecting Disc ValvingHigh-Flow Piston Reduces Harshness
Independent Rebound & Compression Tuning
Larger Working Piston Area for Exact Damping
Superior Control for Large Diameter Tires
Parts Included:
Single ShockShock Boot
