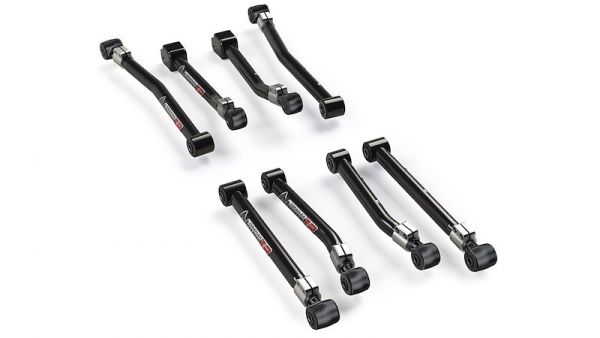

Teraflex Alpine IR Short Control Arm Kit - 8-Arm (2-4" Lift) For 07-18 JK Wrangler 1415611



Fitment:

18+ Jeep Wrangler JK
18+ Jeep Wrangler JK Unlimited



Features:

- Adjustable Alpine IR Short Control Arms balance front caster angle and pinion angles as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 2-4" lift kits
- Alpine IR Short Control Arms are constructed from durable 42mm x 4mm wall DOM tube for maximum strength
- Bolts to the factory control arm mounting brackets
- Install and drive simple bolt-on installation - no welding required
JK Alpine IR Control Arms (all):
- Re-centers axles in the wheel well for proper suspension movement. Can also be used to increase wheelbase
- Full range of movement will not restrict articulation or flex off-road
- Innovative IR Bushings provide unrestricted rotation and flex as well as excellent NVH damping
- Maintenance-free IR Bushings improve on- and off-road ride quality and performance
- Zero maintenance forged threaded joints for smooth quiet flex
- Premium black e-dipped coating on tube and forged rod end housing provides superior durability and corrosion resistance
- Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment
- TeraFlex Lifetime Warranty against defects
,fitment_info=Fits:
- JK Wrangler (2-door)
- JK Wrangler Unlimited (4-door)
- 2-4" Lift
Control Arm Specs:
JK: Alpine IR Short Control Arm Kit - Front Upper (# 1415570):
- Tube Diameter & Wall: 1-5/8" x 0.157" (42mm x 4mm)
- Factory Length = 18-3/4"
- Min. Length = 18-1/2"
- Max. Length = 19-3/4"
- Both Ends = 7/16" (12mm) Bolt
- Thread = 1-1/4"-12 UNF
JK: Alpine IR Short Control Arm Kit - Front Lower (# 1415580):
- Tube Diameter & Wall: 1-5/8" x 0.157" (42mm x 4mm)
- Factory Length = 22-5/8"
- Min. Length = 22-3/4"
- Max. Length = 24"
- Both Ends = 9/16" (14mm) Bolt
- Thread = 1-1/4"-12 UNF
JK: Alpine IR Short Control Arm Kit - Rear Upper (# 1415590):
- Tube Diameter & Wall: 1-5/8" x 0.157" (42mm x 4mm)
- Factory Length = 17-7/16"
- Min. Length = 17-5/8"
- Max. Length = 18-7/8"
- Both Ends = 9/16" (14mm) Bolt
- Thread = 1-1/4"-12 UNF
JK: Alpine IR Short Control Arm Kit - Rear Lower (# 1415600)
- Tube Diameter & Wall: 1-5/8" x 0.157" (42mm x 4mm)
- Factory Length = 19-3/4"
- Min. Length = 19-13/16"
- Max. Length = 21-1/16"
- Both Ends = 9/16" (14mm) Bolt
- Thread = 1-1/4"-12 UNF



Warranty:

Limited Lifetime Warranty
